Craft Tape Four Corner Pasting Machine 75pcs/min For Rigid Phone Box
Double guiding system to ensure a stable running. Non-stop paper feeding. Intergration tape feeding to avoid tape blocking. Applied slant gear to drive the mold. Up to 75pcs min.Quantity: -
LS-T430
-
Longxingsheng
Machine introduction:

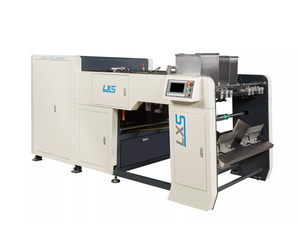

The LS-T430 Automatic Corner Gluing Machine is used to glue all four corners of die-cut cardboard and V-groove cardboard. This machine uses a belt feed method to feed the cardboard to the punching area. Increase the working speed by shortening the feed interval. It can use boomer tape, plastic tape and craft tape. Maximum working speed is 75pcs/min, it can join normal rigid boxes and boxes with sloping sides, double joining for vertical boxes. The entire machine measures 1650*1300*1960 mm. Small and easy to use. It is suitable for assembly with a semi-automatic rigid box manufacturing line.
Main parts:
1. Automatically controlled by PLC
2. Belt-like fast feeding plate
3. Non-stop cardboard quick stacking conversion device
4. Automatic alarm and stop when feeding finished
5. Quick and simple to change the product and plate
6. Automatic alarm when run out of adhesive glue
7. Automatic tape feeding, cutting, corner pasting, one time to complete the four corners pasting
8. Can paste one box twice, suitable for high box type
Parameters
Type LS-T430 Box size (max) L600*W400*H120mm Box size (min) L80*W65*H15mm Cardboard size (max) L700*W500mm Cardboard size (min) L100*W80mm Working speed ≤75 sheet/min Motor power oltage 2kw/380v Air pressure 10L/min 0.6Mpa Dimension L1650*W1300*H1960 Weight 920kg Machine introduction:
The LS-T430 Automatic Corner Gluing Machine is used to glue all four corners of die-cut cardboard and V-groove cardboard. This machine uses a belt feed method to feed the cardboard to the punching area. Increase the working speed by shortening the feed interval. It can use boomer tape, plastic tape and craft tape. Maximum working speed is 75pcs/min, it can join normal rigid boxes and boxes with sloping sides, double joining for vertical boxes. The entire machine measures 1650*1300*1960 mm. Small and easy to use. It is suitable for assembly with a semi-automatic rigid box manufacturing line.
Main parts:
1. Automatically controlled by PLC
2. Belt-like fast feeding plate
3. Non-stop cardboard quick stacking conversion device
4. Automatic alarm and stop when feeding finished
5. Quick and simple to change the product and plate
6. Automatic alarm when run out of adhesive glue
7. Automatic tape feeding, cutting, corner pasting, one time to complete the four corners pasting
8. Can paste one box twice, suitable for high box type
Parameters
Type LS-T430 Box size (max) L600*W400*H120mm Box size (min) L80*W65*H15mm Cardboard size (max) L700*W500mm Cardboard size (min) L100*W80mm Working speed ≤75 sheet/min Motor power oltage 2kw/380v Air pressure 10L/min 0.6Mpa Dimension L1650*W1300*H1960 Weight 920kg
