LS-G2
LONGXINGSHENG

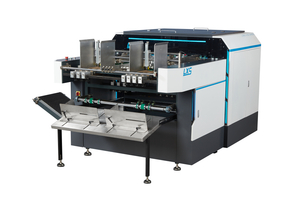

The IntelliSlot Pro Series represents third-generation automated equipment engineered for precision slotting of corrugated gray board . Featuring the patented SmartAdjust™ Tool Control System, this industrial-grade solution achieves processing accuracy of ±0.15mm while delivering efficiency gains up to 40% compared to traditional methods.
Machine model | LS-G2 |
Max grooving quantity | 4 slots |
Feeding guide adjustment method | Electric adjustment |
Blade adjustment method | Automatic size adjustment |
Blade row quantity | Single row |
Accuracy | ±0.1mm |
Highest accuracy | ±0.04mm |
Working efficiency | 60-180pcs/min |
Working speed | 15-35mmin |
Max size(two feeding guides) | L600*W450mm(Feeding width) |
Min size | L140*W140mm |
Cardboard thickness | 0.8-3mm |
Angle adjustment method | Blade row adjustment |
Air supply | 10L/min 0.6mpa |
Motor power | 2.8kw/380v |
Machine dimension | L2800*W1950*H1700 |
Mlachine weight | 1720KG |
Digital intelligence, adjust the grooving dimensions.
Digital electric adjustment with positioning gauge.
Intelligent electric adjustment of belts and cutter heads.
Paper feeding alignment system.
