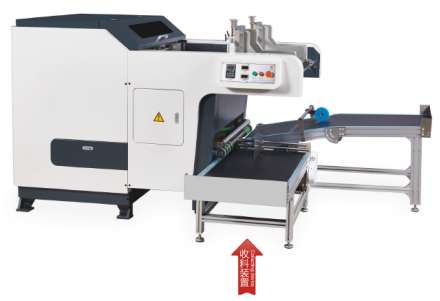

LS-1200Pro High Accuracy Efficiency Grooving Machine With Intergration Paper Separating System
A cardboard slot machine is a special device that uses blades or wheels to insert cardboard into slots. Having the right tools is essential when cutting materials such as gray board, MDF and cardboard. This is where the double V slotter comes into play.Quantity: -
LS-1200Pro
-
longxingsheng
Introduction to LS-1200Pro
This machine is an automatic slotting machine, the tool seat is composed of high-precision sliders and rotating gears, and is easy to operate. Narrowband and Broadband allow any slot position setting. Adapt to more products. With single-sided and left-right functions, suitable for more products. In addition, the integrated paper separation system with special surface treatment ensures abrasion resistance and durability. Measuring rods are etched for easier and more efficient replacement.
Parameters of LS-1200Pro
Machine model
LS-1200Pro
Quantity of groove at a time
8 slots
Working speed
35m/min(100-200pcs/min)
Cardboard size
140*120-600*600mm
Cardboard thickness
0.8-2.5mm
Carton paper thickness
250-600g/m2
Motor power
2.5kw/380v 3 phase
Machine dimension
L2200*W1450*H1350mm
Machine weight
1500kg
Feature of LS-1200Pro
Blade seats are consits of high accuracy sliding block and rotation gear wheel, make operation easier.
Narrow and wide belts ensures setting any grooving position. Suiteable for more products.
Single side aligning and double sides aligning function which are suitable for more products.
Integration paper separating system which has been special surface processing ensure anti-wear and durable.
Introduction to LS-1200Pro
This machine is an automatic slotting machine, the tool seat is composed of high-precision sliders and rotating gears, and is easy to operate. Narrowband and Broadband allow any slot position setting. Adapt to more products. With single-sided and left-right functions, suitable for more products. In addition, the integrated paper separation system with special surface treatment ensures abrasion resistance and durability. Measuring rods are etched for easier and more efficient replacement.
Parameters of LS-1200Pro
Machine model
LS-1200Pro
Quantity of groove at a time
8 slots
Working speed
35m/min(100-200pcs/min)
Cardboard size
140*120-600*600mm
Cardboard thickness
0.8-2.5mm
Carton paper thickness
250-600g/m2
Motor power
2.5kw/380v 3 phase
Machine dimension
L2200*W1450*H1350mm
Machine weight
1500kg
Feature of LS-1200Pro
Blade seats are consits of high accuracy sliding block and rotation gear wheel, make operation easier.
Narrow and wide belts ensures setting any grooving position. Suiteable for more products.
Single side aligning and double sides aligning function which are suitable for more products.
Integration paper separating system which has been special surface processing ensure anti-wear and durable.
