Fully Automatic Double Station High Speed Slotting Machine

LS-1200Plus is an automatic grooving machine for cardboard, carton paper and MDF board. This machine has paper feeding aligning system. It is suitable for more product because of double blade seats. The souble paperboard feeding station, increasing production capacity. Machine angle can be adjusting from 80°-140°。
Availability:
Quantity:
  • LS-1200Plus

  • longxingsheng

LS-1200PLUS introduction

LS-1200PLUS is a fully automatic grooving machine, it can be use in cardboard, carton paper and MDF board. This machine fast speed up to 35 pcs/min and the max paper up to 1000*600mm, min paper being to 140*120. It is able to various size box grooving,

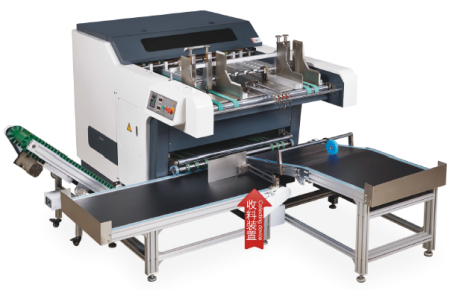

微信图片_20230629095321

  微信图片_20230629095329

A cardboard slot machine is a special device that uses blades or wheels to insert cardboard into slots. The machine can be programmed to create precise grooves at specific locations and depths, ensuring consistent results every time. One of the main advantages of using slotting machines is speed. Manual processes limit the number of panels a worker can process at a time, whereas slotting machines can process hundreds or even thousands of panels per hour. This not only saves time, but also increases productivity and reduces labor costs.微信图片_20230629085832

Machine parameters

Machine model

LS-1200Plus

Quantity of groove at a time

8 slots

Working speed

35m/min(100-200pcs/min)

Cardboard size

140*120-1000*600mm

Cardboard thickness

0.8-4mm

Carton paper thickness

500-800g/m2

Motor power

2.5kw/380v 3 phase

Machine dimension

L2050*W1450*H1350mm

Machine weight

1430kg

In conclusion, a cardboard carton paper grooving machine is a valuable investment for manufacturers looking to enhance efficiency and precision in their production processes. With the right machine, manufacturers can streamline their grooving process, increase productivity, and produce high-quality cartons that meet the demands of their customers.
